商品の詳細:
|
| 電源電圧: | DC24V | ゼロ温度漂移: | ±0.02%FS/℃ |
|---|---|---|---|
| 長期 安定性: | ±0.1%FS/年 | 中温: | -40~+85°C |
| 住宅保護: | IP65 | サンプリングレート: | 1ms |
| ハイライト: | explosion-proof digital pressure transmitter,high-precision hydraulic pressure sensor,diffusion silicon pneumatic sensor |
||

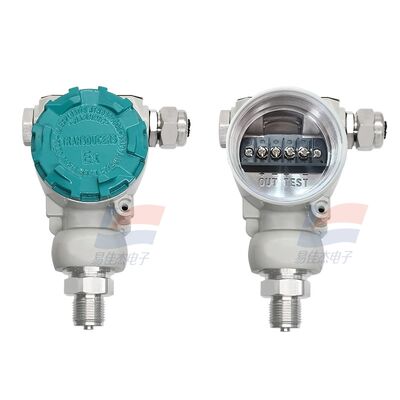

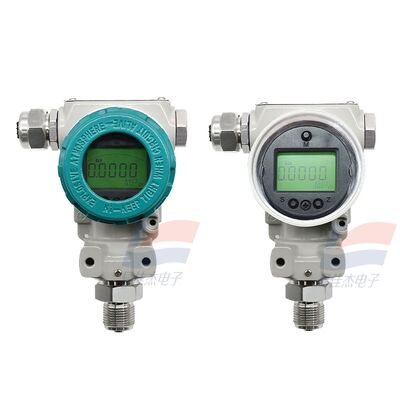

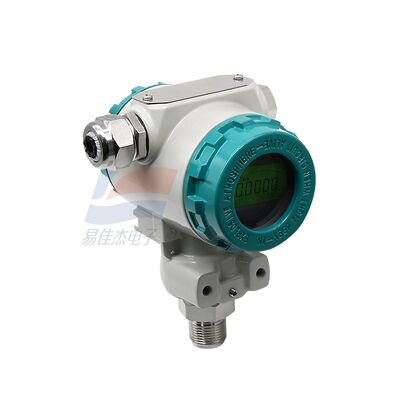

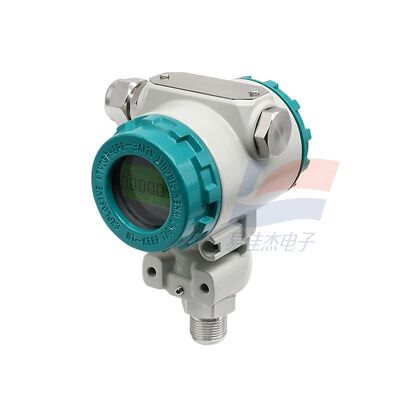

ACP03 series Explosion-Proof Diffusion Silicon Digital Pressure Transmitter High-Precision Pneumatic Hydraulic Pressure Sensor
Product Overview:
The Autosen ACP03 pressure transmitter is an industrial-grade pressure measuring device designed for various industrial scenarios involving liquids and gases. It adopts advanced pressure sensing technology, which enables accurate conversion of pressure parameters into linear electrical signals. With excellent stability and environmental adaptability, the transmitter can meet the pressure monitoring needs of multiple fields such as general industrial control, fluid systems, and light chemical industry. It is a cost-effective and reliable pressure measurement solution for industrial production.
Application Scope:
This pressure transmitter is widely used in various industrial fields due to its stable performance and reliable protection. It can be applied to pressure monitoring of water supply and drainage systems, hydraulic and pneumatic systems in mechanical equipment, pressure detection of low-corrosivity fluid pipelines in light chemical industry, and pressure measurement in general process control links. It is especially suitable for industrial occasions that require medium-precision measurement and have certain requirements for environmental protection.
| Parameter | ACP03 Series Specs | Parameter | ACP03 Series Specs |
| Model | ACP03 Series | Model | ACP03 Series |
| Non-linearity | ±0.2%FS | Repeatability | ±0.1%FS |
| Zero Temperature Drift | ±0.02%FS/℃ | Sensitivity Temperature Drift | ±0.03%FS/℃ |
| Long-term Stability | ±0.1%FS/Year | Response Time | ≤50ms |
| Medium Temperature | -40~+85℃ | Operating Temperature | -40~+85℃ |
| Housing Protection | IP65 | Overload Capacity | 150%FS |
| Housing Material | Cast Aluminum + SUS304 | Gas-Contact Metal Material | SUS304 + 316L |
| Product Weight | Approx. 900g | Pressure Type | Gauge Pressure |
| Sampling Rate | 1ms | Resolution | ≤14 Bits |
| Short-circuit Protection | Yes | Reverse Polarity Protection | Yes |
| Load Capacity | Current Output: Max. Load Impedance 800Ω; Voltage Output: Output Impedance ~5KΩ | ||
| Measuring Medium | Oil, Water, Gas and Other Stainless Steel-Compatible Media |
