商品の詳細:
|
| 再現性: | ±0.2%FS | ゼロ温度漂移: | ±0.3%FS/℃ |
|---|---|---|---|
| 応答時間: | ≤50ms | 中温: | -40〜85℃ |
| 温圧統合版: | 温度範囲: -20~80℃ | 解決: | ≤14ビット |
| ハイライト: | high-precision temperature pressure sensor,integrated temperature pressure transmitter,gas liquid temperature sensor |
||

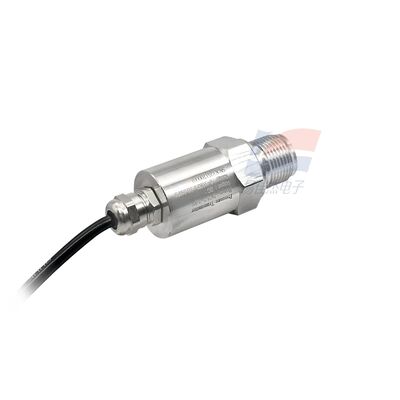

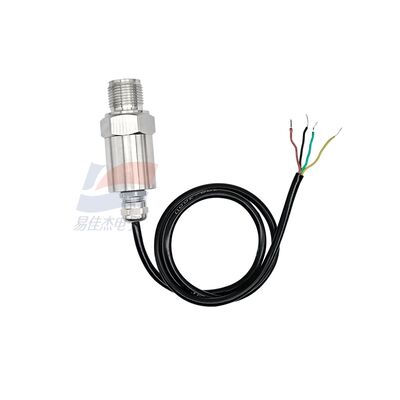

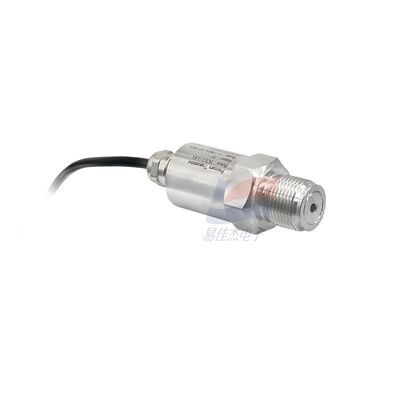

APD Series Temperature And Pressure Integrated Transmitter High-Precision Gas Liquid Temperature And Pressure Sensor
Product Features & Applications of APD Series:
Features:
Supports dual power configurations (DC5V/DC3.2V~5V) with ultra-low power operation (≤3mA) and sleep mode (15uA), ideal for battery-powered or energy-limited scenarios.
SUS304 wetted parts allow safe measurement of oil, water, gas, and other stainless steel-compatible media, covering diverse industrial fluid monitoring needs.
The temp-pressure integrated version (temperature range: -20~80℃, accuracy: ±2.5%FS) provides combined parameter monitoring in one device.
Applications:
The APD series is widely used in:
|
Parameter |
APD Series Specs |
Parameter |
APD Series Specs |
|---|---|---|---|
| Model | APD Series | Model | APD Series |
| Supply Voltage |
DC5V (0.5~4.5V output, power consumption < 3mA);
DC3.2V~5V (UART output, IIC output, sleep power consumption 15uA, operating power consumption ~2.5mA) |
- | - |
| Measuring Medium | Oil, water, gas and other stainless steel-compatible media | - | - |
| Repeatability | ±0.2%FS | Long-term Stability | ±0.2%FS/Year |
| Zero Temperature Drift | ±0.3%FS/℃ | Sensitivity Temperature Drift | ±0.3%FS/℃ |
| Response Time | ≤50ms | Resolution | ≤14 Bits |
| Medium Temperature | -40~85℃ | Operating Temperature | -40~85℃ |
| Housing Protection | IP67 | Overload Capacity | 150%FS |
| Housing Material | SUS304 | Gas-Contact Metal Material | SUS304 |
| Product Weight | Approx. 185g | Pressure Type | Gauge Pressure |
| Temp-Pressure Integrated Version | Temperature Range: -20~80℃ | Temperature Accuracy | ±2.5%FS |
