商品の詳細:
|
| 検出原理: | ndir | 検出ターゲット: | CO2 |
|---|---|---|---|
| 検知範囲: | 400~10000ppm 選択可能 | 解像度比: | 1ppm |
| ハイライト: | NDIR carbon dioxide gas sensor,CO2 gas sensor with NDIR principle,Non dispersive infrared CO2 sensor |
||

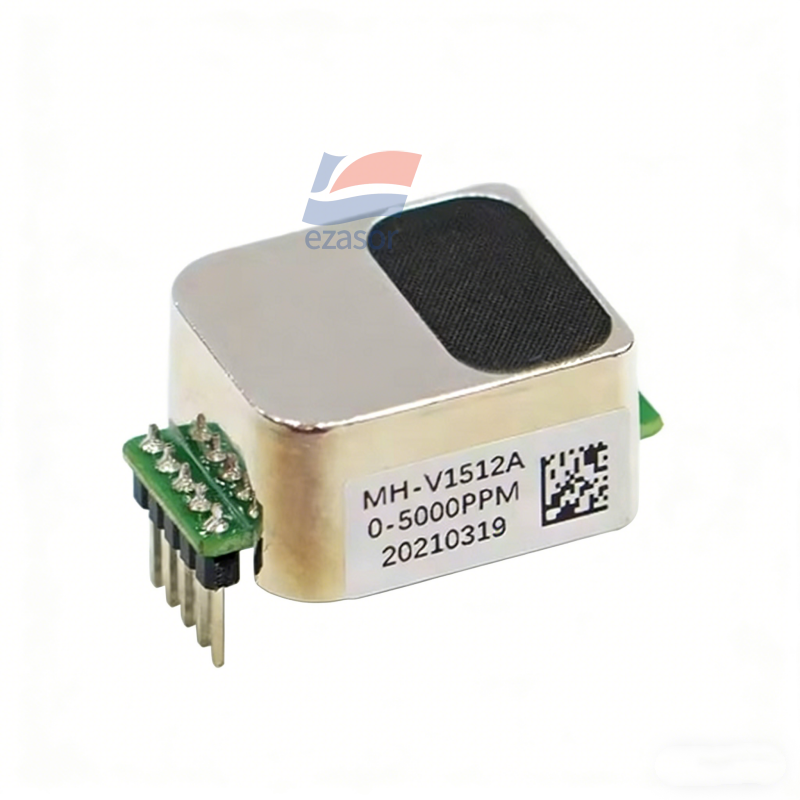

MH-V1512A Carbon Dioxide Gas Sensor Non Dispersive Infrared NDIR Principle
Description
MH-V1512A-LGC is a general purpose, miniaturized sensor that uses non-dispersive infrared (NDIR) principle to detect CO2 in the car. It has good selectivity, high sensitivity, low power consumption, no oxygen dependence, long life and other characteristics. It can be used to monitor the CO2 concentration in the car to avoid fatigue driving caused by excessive concentration, thereby avoiding vehicle safety accidents.
Application
Car Air Conditioning System
Car Detector
Car Fresh Air System
Features
Universal small sensor
Long service life
High sensitivity
Ultra-low power
Water and corrosion resistant
Resistance to water vapor interference
Not poisoned
Specification:
| Detection accuracy |
±75ppm/±10% Reading value(-5℃～45℃) ±200ppm/±20% Reading value(-40℃～-5℃, 45℃～85℃) |
| Operating voltage DC | (9～16)V |
| Operating current | ＜40mA |
| Peak current | ≤125mA |
| Power consumption | ＜0.48W |
| Preheating time | 20s |
| Response time | T90＜60s |
| Recovery time | T10＜60s |
| Operating temperature | -40℃～85℃ |
| Storage temperature | -40℃～85℃ |
| Operating humidity | 0～95%RH (No condensation) |
