商品の詳細:
|
| 型番: | ZCE04B | 動作電圧: | 3.5~5V |
|---|---|---|---|
| 動作電流: | <100mA | 応答時間: | <30s> |
| ハイライト: | industrial gas detection module,4 in 1 gas sensor,catalytic electrochemical gas detector |
||

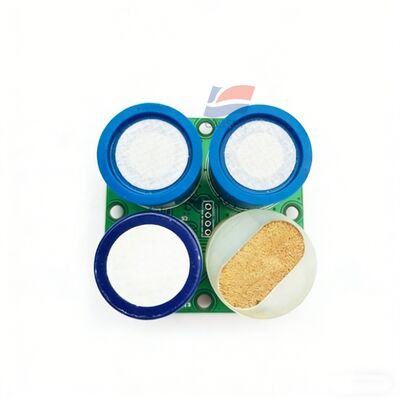

ZCE04B 4 In 1 Industrial Gas Detection Module Catalytic Electrochemical
Application
It can be used in the environment of factory gas leakage, underground operation, tunnel detection, coal mine detection and so on. It can be worn by human body or hand-held into the detection place, or it can be used in fixed place to detect the current environmental gas concentration and remind
personnel to be safe.
Features
High integration, small size,
Good stability and fast response
Real-time serial port output concentration, easy to use
Specifications
Specification:
|
Detection gas
|
CO: 0-1000ppm H2S: 0-100ppm O2: 0-30%vol CH4: 0-100%LEL |
| Resolution | CO: 1ppm H2S: 1ppm O2: 0.1%vol CH4: 1%LEL |
| Output Way | UART (2.8V level) |
| Working Conditions | -20~50℃,15~90%RH |
| Storage Temperature | 0~20℃ (recommended) |
| Expected Life span | 2 years (in clean air) |
