商品の詳細:
|
| 部品番号: | CLE-0421-400 | わずかな範囲: | 0-20 ppm |
|---|---|---|---|
| マックス 過負荷: | 150ppm | 感度: | 0.5±0.1μA/ppm |
| ハイライト: | Sulphur Dioxide gas sensor electrochemical,4SO2-20 gas sensor with warranty,CLE-0421-400 gas sensor industrial |
||

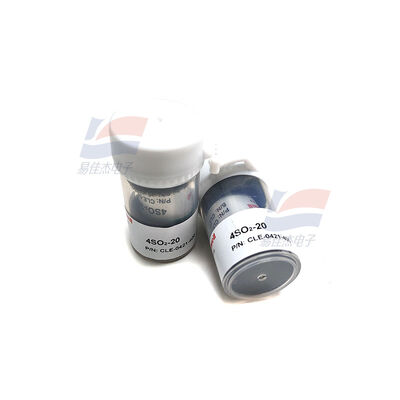

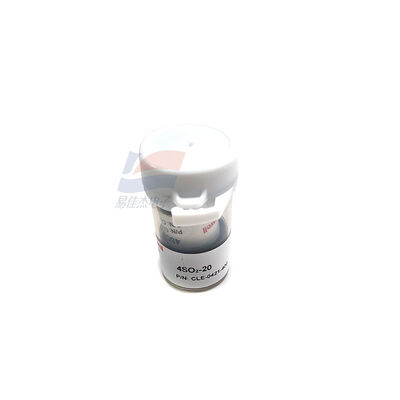

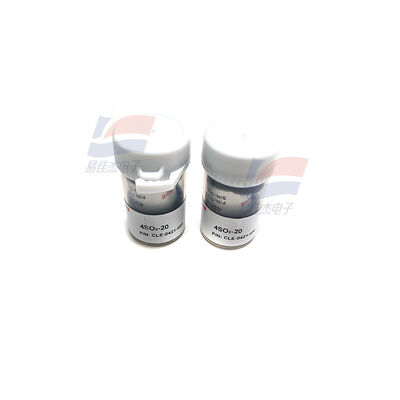

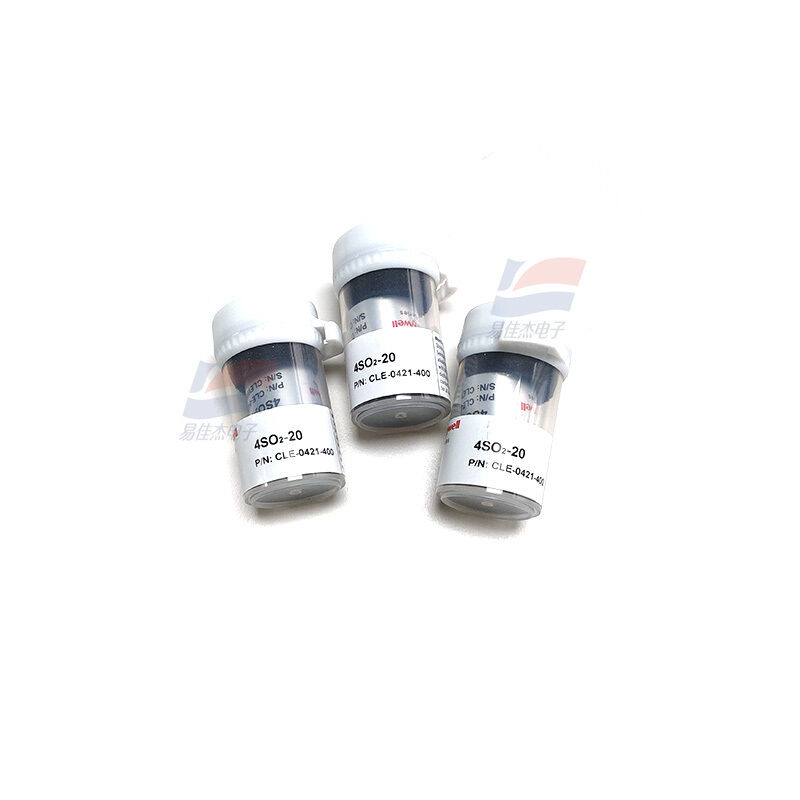

4SO2-20 CLE-0421-400 Sulphur Dioxide Gas Sensor Electrochemical
Specification:
| Response Time (T90) | ≤35–45 s |
| Baseline (20℃) | <±0.2 μA |
| Baseline Drift (-20℃~50℃) | <0.5 ppm Equivalent Value |
| Linearity | Linear |
| Bias Voltage | 0 mV |
| Long-Term Stability | <2% Signal Value / Month |
1. Operating Environment
Temperature: -20℃～+50℃
Humidity: 15%–95% RH (non-condensing)
Pressure: 90–111 kPa (Standard Atmospheric Pressure ±10%)
Storage Temperature: 0℃～20℃ (Dedicated Packaging Box)
Shelf Life: 6 Months
2. Electrical and Safety
Maximum Open Circuit Voltage: 1.3 V
Maximum Current at 150 ppm SO₂: <0.2 mA
Maximum Short Circuit Current: <1.0 A
