商品の詳細:
|
| センサーの種類: | 半導体フラットサーフェースセンサー | 標準カプセル化: | メタルキャップ |
|---|---|---|---|
| 検出ガス: | 冷媒ガス | 検知範囲: | 100～10000ppmLループ電圧 5.0V±0.1V DC 加熱電圧 5.0V±0.1V DC 負荷抵抗 調整可能 加熱消費量 ≤300mW |

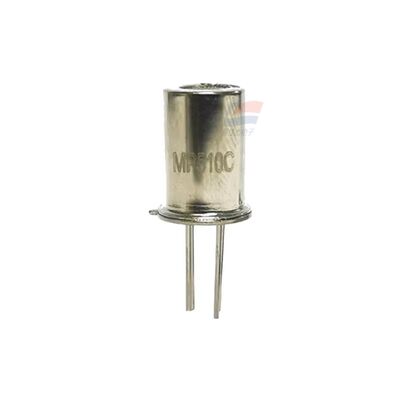

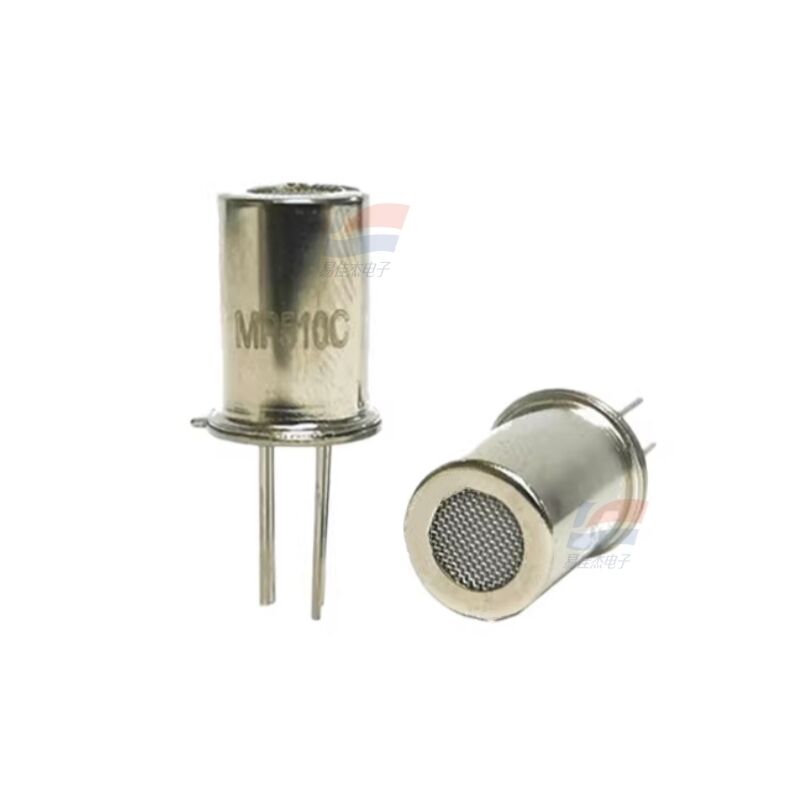

MP510C Refrigerant Gas Sensor High Selectivity Semiconductor Flat Surfaced
The MP510C Freon gas sensor uses a multilayer thick film manufacturing process to fabricate heating and measuring electrodes and a metal oxide semiconductor gas-sensitive layer on a miniature Al2O3 ceramic substrate, and encapsulate it in a metal casing. When the detected gas exists in the ambient air, the conductivity of the sensor changes. The higher the concentration of the gas, the higher the conductivity of the sensor. This change in conductivity is converted into an output signal corresponding to the gas concentration through the circuit. The product has good anti-interference ability against common gases such as alcohol and acetic acid in usage scenarios.
Specification:
| Loop voltage | 5.0V±0.1V DC |
| Heating voltage | 5.0V±0.1V DC |
| Load resistance | Adjustable |
| Heating consumption | ≤300mW |
