商品の詳細:
|
| 電源電圧: | 10～16V | 使用温度: | -40~+85 |
|---|---|---|---|
| 保管温度: | -55～+100 | インパクト: | 150g |
| ハイライト: | medical gas pressure sensor,air duct pressure sensor 26PCFFA6G,espiratory device pressure sensor |
||

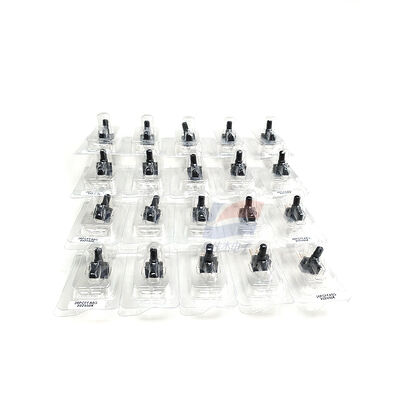

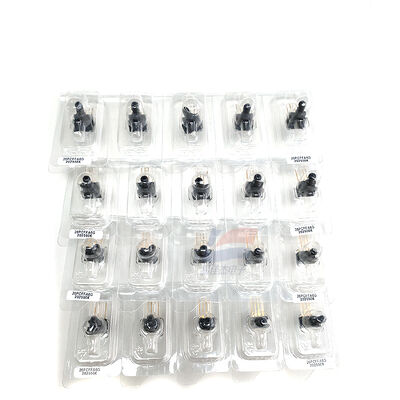

Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure
| Sensor Model | 26PCFFA6G |
| Pressure Type | Gauge Pressure |
| Detection Range | 0 ~ 100 PSI |
| Maximum Overload Pressure | 200 PSI |
| Supply Voltage | 10 VDC (Typical) |
| Output Voltage | 0 ~ 100 mV |
| Response Time | ≤ 1 ms |
| Media Type | Dry Gas & Non-corrosive Liquid |
| Working Temperature | -40 ℃ ~ +85 ℃ |
| Package Type | SIP-4 Through-hole |
| Pressure Port | Single Axial Barbless Port |
| Characteristic | Temperature Compensated, Unamplified |
