商品の詳細:
|
| 警報値: | 下限警報 25ppm、上限警報 35ppm | 警報方法: | 90dBブザー |
|---|---|---|---|
| 保護レベル: | IP67 | 爆発的な認証: | ATEX / IECEx Ex ia IIC T4 Ga |
| 動作温度: | -40℃ ~ +50℃ | 動作湿度: | 5%~95% RH |
| 電源: | 3.6V | サイズ/重量: | 54×91×32mm |
| ハイライト: | portable ammonia gas detector,electrochemical gas analyzer,single gas detector diffusive |
||
Product Description:

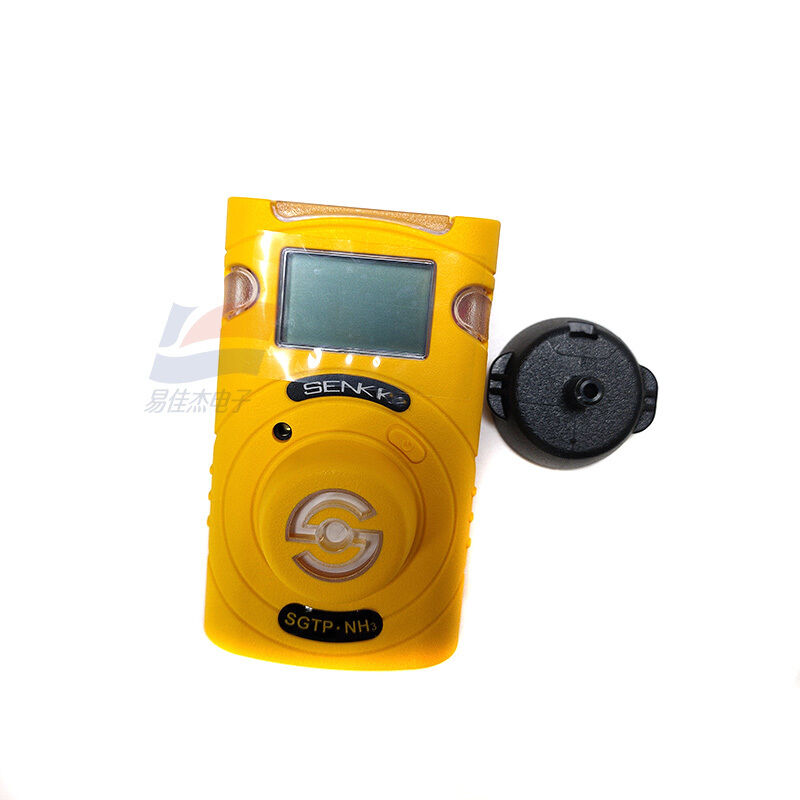

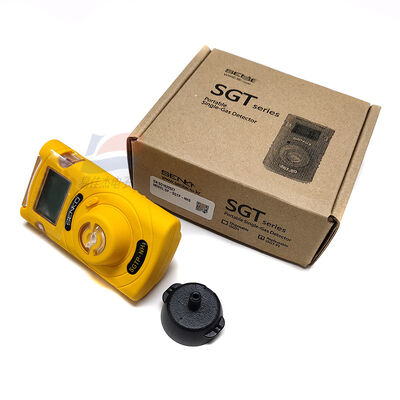

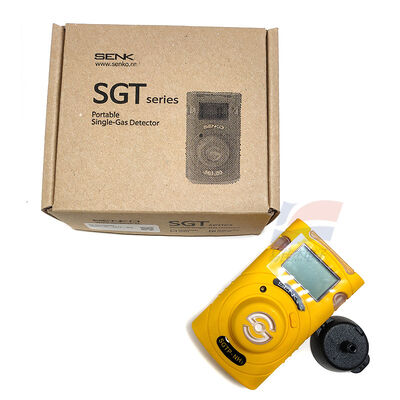

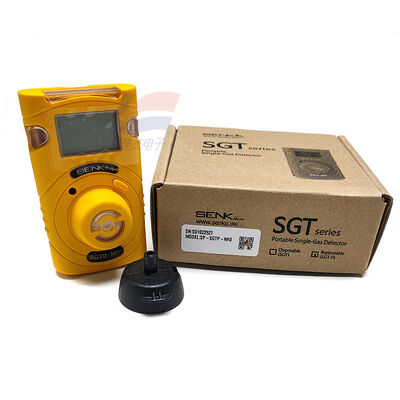

YJJ SP-SGTP-NH3 Electrochemical Portable Single Ammonia Gas Detector
Features:
I. Basic Information
Brand: SENKO (South Korea)
Model: SP-SGTP-NH3 (Portable Single Ammonia Gas Detector)
Detection Principle: Electrochemical Sensor
Sampling Method: Diffusion type (natural intake, optional external sampling pump)
II. Core Technical Parameters
Range: 0~100 ppm (The regular version also has a 0~20 ppm version)
Resolution: 1 ppm
Accuracy: ±5%FS
Alarm Value: Low alarm 25 ppm, High alarm 35 ppm (Can be customized)
Alarm Method: 90dB buzzer + Red LED flashing + Vibration triple alarm
Protection Grade: IP67, Dust-proof and Water-proof
Explosion-proof Certification: ATEX / IECEx Ex ia IIC T4 Ga, Intrinsically Safe Explosion-proof
Operating Temperature: -40℃ ~ +50℃
Operating Humidity: 5%~95% RH (Non-condensing)
Power Supply: 3.6V disposable lithium battery, 24-month battery life (Daily monitoring)
Size / Weight: 54×91×32mm, Complete Machine 93g, Compact and portable, can be clipped onto tools
Additional Functions: Store the latest 30 event records; Support infrared communication (IR-Link) data export
III. Main Applications
Refrigeration Industry: Cold storage, cold chain, food processing plants for ammonia refrigeration unit leakage detection (Ammonia is a common refrigerant)
Chemical / Fertilizer: Synthesis ammonia workshop, fertilizer plant, ammonia water storage tank, pipeline leakage inspection
Livestock Breeding: Ammonia concentration monitoring in livestock farms to ensure the safety of livestock and personnel
Municipal Environmental Protection: Sewage station, garbage station, septic tank ammonia detection
Safety Inspection: Before working in confined spaces or limited spaces, ammonia concentration detection to prevent poisoning and explosion risks
Personnel Protection: Worn by frontline workers to receive real-time warnings of ammonia, avoiding respiratory burns and poisoning
Specifications:
| Range | 0-100 ppm |
| Resolution | 1 ppm |
| Accuracy | ±5%FS |
| Alarm Value | Low alarm 25 ppm |
| Alarm Method | 90dB buzzer + Red LED |
