商品の詳細:
|
| 測定範囲: | 0-100%VOL | 正確さ: | ±2% FS |
|---|---|---|---|
| 応答時間: | T90 < 15s | 出力信号: | 電圧アナログ信号 |
| 動作温度: | 0℃～+45℃ | 寿命: | 18〜24ヶ月 |
| 互換性: | 標準ピン | ドレーガー・デルガー: | エビータ2/4/XL |
| ハイライト: | YJJ GO-02 electrochemical oxygen sensor,medical oxygen gas sensor,0-100%VOL oxygen sensor |
||
Product Description:

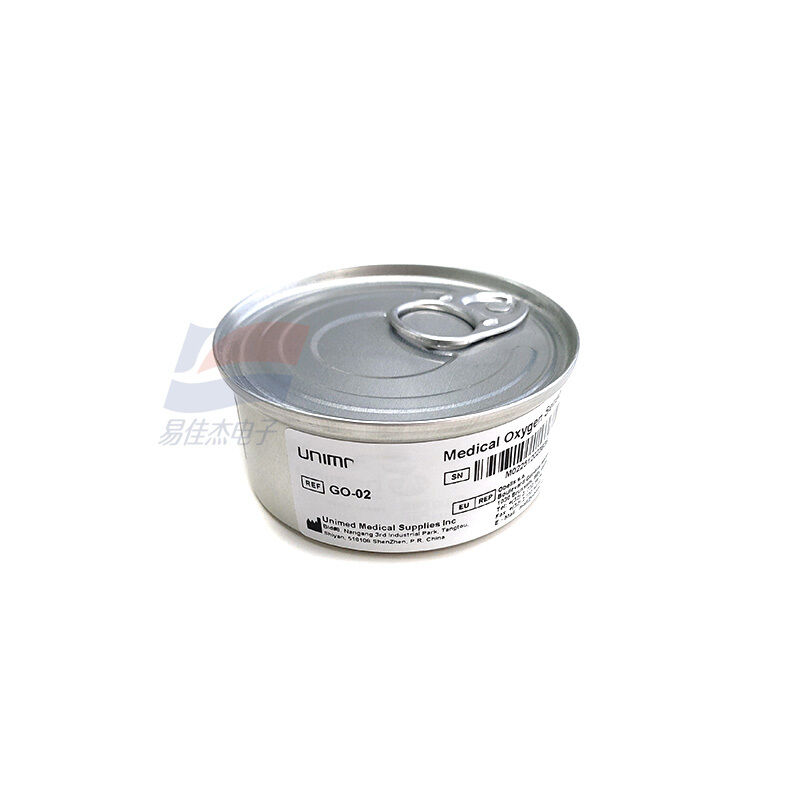

YJJ GO-02 0-100%VOL Electrochemical Oxygen Sensor Medical Medical Devices
Features:
I. Basic Information
Model: GO-02 (Medical Specialized Oxygen Sensor Core)
Principle: Galvanic (primary battery) electrochemical principle, no external power supply required, passive sensing of oxygen concentration
Application: Dedicated oxygen battery for Drager Delgaer, Ohmeda GE American Medical Devices ventilators / anesthesia machines, compatible with Envitec OOM201, a medical-grade high-precision oxygen sensor
Alternative Part Number: Drager 6803290/6850645, Ohmeda 6051-0004-001
II. Core Technical Parameters
Measurement Range: 0–100% VOL Oxygen (O₂)
Accuracy: ±2% FS, excellent linearity, medical-grade stability
Response Time: T90 < 15s, rapid sensing of oxygen concentration changes
Output Signal: Voltage analog signal (direct connection to ventilator motherboard)
Operating Temperature: 0°C ~ +45°C (compatible with normal temperature environment of medical equipment)
Service Life: 18–24 months (medical routine conditions)
Compatibility: Standard pins, compatible with mainstream medical equipment from Europe and America
Certification: CE, FDA medical grade compliance certification, safe and reliable
III. Compatible Equipment
Drager Delgaer: Evita 2/4/XL, Fabius anesthesia machine, Babylog 8000 neonatal ventilator
Datex-Ohmeda GE American Medical Devices: Aespire, Avance, S-5 series anesthesia / ventilator
Others: -, Analytical Industries, etc. medical equipment
IV. Main Applications
Medical ventilators: Real-time monitoring of patient inhaled oxygen concentration, precise control of oxygen supply ratio, ensuring safety of critical care, anesthesia, and neonatal ventilation
Anesthesia machines: Monitoring of oxygen content in anesthesia circuit during surgery, preventing hypoxia or oxygen poisoning
Medical oxygen generation equipment: Oxygen concentration detection and alarm for oxygen therapy equipment
Medical monitoring accessories: ICU, operating room, emergency equipment, core component for oxygen concentration monitoring
Specifications:
| Measurement Range | 0–100% VOL |
| Accuracy | ±2% FS |
| Response Time | Response Time |
| Output Signal | Voltage analog signal |
| Operating Temperature | 0℃ ~ +45℃ |
| Service Life | 18–24 months |
