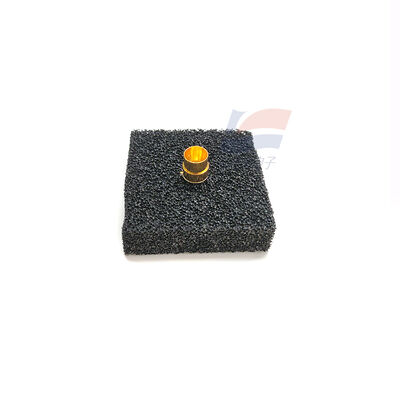

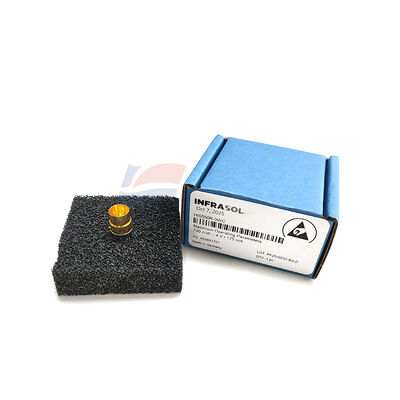

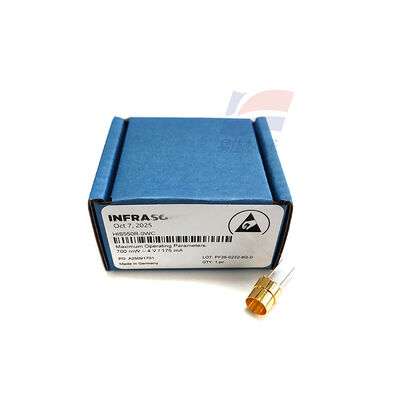

YJJ HIS550R-0WC Nano Infrared Light Source / Blackbody Radiation Source NDIR Infrared Gas Sensor

Product Description:

YJJ HIS550R-0WC Nano Infrared Light Source / Blackbody Radiation Source NDIR Infrared Gas Sensor

Features:

I. Model and Positioning

Model: HIS550R-0WC Nano Infrared Light Source / Blackbody Radiation Source

Type: Dedicated Emitter for NDIR Infrared Gas Sensor (Not the Complete Sensor Unit)

Package: TO-39/TO-5, Gold-coated Reflective Surface + Hewitt Collimating Cone

II. Core Parameters (Electrical / Optical)

1. Electrical Parameters

Maximum Power Consumption: 700 mW (DC)

Operating Voltage: ≤ 4.0 V

Operating Current: ≤ 175 mA

Cold / Hot Temperature Resistance: 22 ± 3 Ω (almost consistent, easy to control)

2. Optical Parameters

Radiation Area: 11 mm²

Emissivity: > 0.9 (Close to Blackbody)

Radiation Temperature: 600℃ @ 650 mW

Output Power: Up to 190–200 mW (Far exceeding traditional MEMS 40 mW)

Spectral Range: 2–20 μm (Mid-Infrared, Covering Most Gas Absorption Peaks)

Modulation Frequency: 6 Hz (Square Wave, 50% Duty Cycle, No Mechanical斩波 Required)

Window / Filter: None (Open Type, Suitable for Wide Spectral Range)

III. Key Features

Nanotechnology Patent Technology: Signal Intensity Increased by 500%, High Signal-to-Noise Ratio

High Power + Long Life: 600℃ Low Temperature Operation, 10-Year Lifespan +

Electrical Modulation Without: No Moving Parts, Strong Stability, Low Maintenance

Wide Spectral Adaptation Range: 2–20 μm, Covering CO₂/CO/CH₄/SF₆/VOC Etc.

IV. Main Applications (Core Light Source for Gas Detection)

1. NDIR Non-Dispersive Infrared Gas Analyzer (Most Core)

Detected Gases: CO₂, CO, CH₄, NO, SO₂, SF₆, Refrigerants, VOC, Alcohol, etc.

Application Scenarios:

Industrial Processes: Metallurgy, Chemicals, Gas Leakage / Concentration Monitoring

Environmental Monitoring: Atmospheric Pollution Sources, Landfill, Sewage Treatment Plant Odor / Greenhouse Gas Detection

Security: Coal Mine Methane (CH₄), Ammonia (NH₃) Leakage Alarm, Gas Leakage Detection

Medical: Respiratory Gas (CO₂), Anesthesia Gas Monitoring

2. Spectral Analysis Equipment

PAS Photoacoustic Spectroscopy, FT-IR Fourier Infrared, ATR Attenuated Total Reflection Spectrometer Light Source

Material Analysis,Testing, Food Safety (Pesticide Residue)

3. Others

Infrared Temperature Measurement, Infrared Imaging, Optical Blocking / Liquid Level Sensor
