商品の詳細:
|
| 寸法: | 86×55×20mm | 重さ: | 76 g |
|---|---|---|---|
| シェル: | ステンレス鋼 | 保護: | IP67 |
| 温度: | 連続 -20～+60℃ | 間欠: | -30～+60℃ |
| 湿度: | 0 ～ 95% 相対湿度 | サンプリング: | 拡散のタイプ |
| ハイライト: | RAE Systems toxic gas detector,portable gas detection instrument,single gas analyzer with warranty |
||
Product Description:

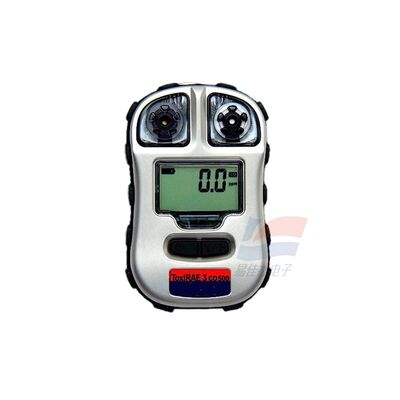

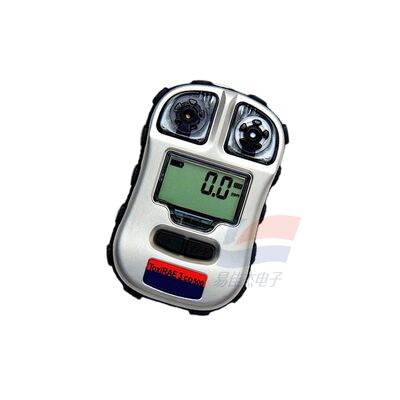

YJJ PGM-1700 RAE Systems Portable Single Toxic Gas Personal Protection Detection Instrument
Features:
I. Core Parameters (H₂S / CO Versions)
1. Sensor (Electrochemical EC)
H₂S Version: 0–100 ppm, resolution 0.1 ppm; T90 < 12 s; Error ±3%
CO Version (Low): 0–500 ppm, resolution 1 ppm; T90 < 15 s
CO Version (High): 0–1999 ppm, resolution 1 ppm; T90 < 15 s
2. Alarm Settings (Customizable)
H₂S Default: Low 10 ppm, High 20 ppm, STEL 15 ppm, TWA 10 ppm
CO Default: Low 25 ppm, High 50 ppm, STEL 100 ppm, TWA 25 ppm
3. Physical / Environmental
Size: 86×55×20 mm; Weight: 76 g (including battery)
Shell: Stainless steel + engineering plastic; Protection: IP67 (dustproof, water-resistant)
Temperature: Continuous -20 to +60°C; Intermittent -30 to +60°C
Humidity: 0–95% RH (no condensation)
4. Electrical / Display
Sampling: Diffusion type; Display: LCD real-time concentration, TWA/STEL/peak, battery level, calibration reminder
Alarm: 95 dB buzzer + 6×LED flashing + vibration (Triple alarm)
Battery: 2/3 AA lithium batteries (non-rechargeable, replaceable); Battery life: 2 years (standard)
Data: Store 10 alarm records; Transmission: Infrared (AutoRAE Lite calibration/download)
Certification: ATEX II 1G, IECEx, UL/cUL, CMC
II. Main Applications
1. Personal Safety Protection (Core)
Oil / Petrochemical, Natural Gas, Sewage Plant: H₂S leakage warning
Metallurgy, Coking, Boiler Room, Underground Pipe Laying: CO poisoning protection
Entry into confined spaces (storage tanks, ship cabins, pipelines): Personal on-site monitoring
2. Industrial Safety Inspection
Factory fixed-point inspection, hot work supervision, confined space operation approval
Occupational Health: Daily TWA/STEL exposure monitoring,超标 alarm
3. Municipal / Public Safety
Gas pipeline repair, sewer / inspection well operation, fire emergency rescue
Specifications:
| Core Parameters | H2S / CO Versions |
| Sensor | Electrochemical EC |
| H2S Version | 0.1 ppm |
| CO Version (Low) | 0–500 ppm |
| CO Version (High) | 0–1999 ppm |
| H2S Default | Low 10 ppm, High 20 ppm |
