商品の詳細:
|
| 測定範囲: | 0 - 25% Vol. | ガス検出: | O2 |
|---|---|---|---|
| 解決: | 0.1 % ボリューム | T90 応答時間: | ≤ 15 秒 |
| 電源: | DC5V±0.1V | 出力1: | UART-TTL（3.3Vレベル） |
| 作業環境: | -20 +50℃に | 寸法: | Φ23.5mm×24.5mm |
| ハイライト: | YJJ ZE03-O2 oxygen sensor module,electrochemical oxygen sensor with UART output,0-25%Vol O2 sensor analog output |
||

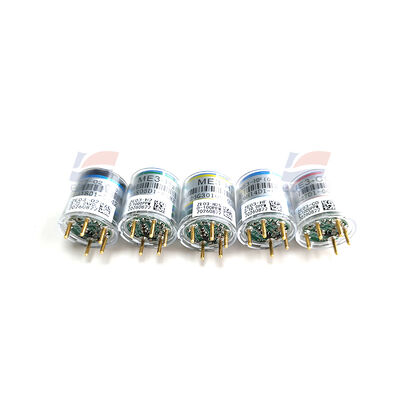

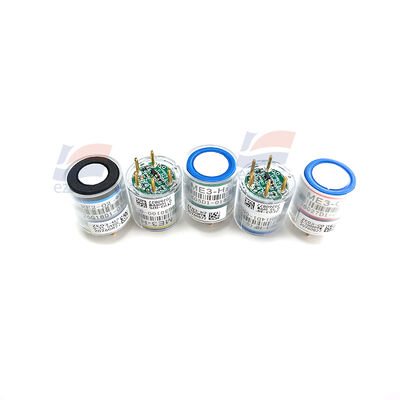

Product Description: YJJ ZE03-O2 Electrochemical Oxygen Sensor Module 0-25%Vol O2 UART & Analog Output Features: | Project | Specification | | --- | --- | | Detection of gas | O2 (oxygen) | | Measurement range | 0 - 25% VOL | Resolution | 0.1% VOL | Response Time T90 | ≤ 15 seconds | Winsensors | | Power Supply Voltage | DC 5.0V ± 0.1V | Working current | < 5 mA | Output | UART TTL-3V (9600bps, 8N1); Linear output of analog voltage 1.5-0V for | Operating Environment | -20 to
