商品の詳細:
|
| 検出されたガス: | H2 | 検知範囲: | 0-1000 ppm |
|---|---|---|---|
| 解決: | 1 PPM | T90 応答時間: | ≤30秒 |
| アナログ出力: | 0.6～3.0V | デジタル出力: | UART TTL-3V |
| 電源電圧: | DC5.0V±0.1V | 動作電流: | < 10mA |
| ハイライト: | electrochemical hydrogen sensor module,H₂ leakage alarm sensor,0-1000ppm hydrogen gas sensor |
||

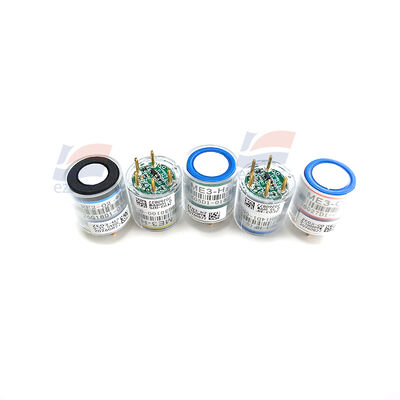

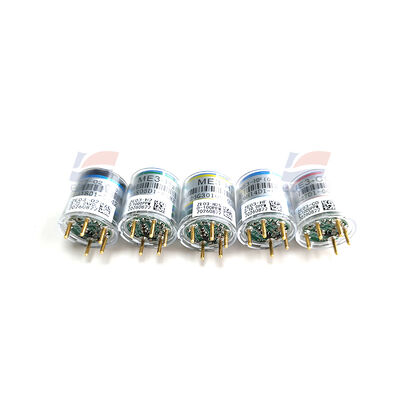

Product Description: YJJ ZE03-H2 0-1000PPM Electrochemical Hydrogen Sensor Module For H₂ Leakage Alarm System Features: Core Detection & Electrical Parameters | Model | ZE03-H2 | | Gas Detected | Hydrogen H₂ | | Detection Range | 0 - 1000 ppm | | Resolution | 1 ppm | | T90 Response Time | ≤ 30 s | | Analog Output | 0.6 - 3.0 V (linear corresponding to concentration) | | Digital Output | UART TTL-3V, baud rate 9600bps | | Supply Voltage | DC 5.0V ± 0.1V | | Operating Current |
