商品の詳細:
|
| 圧力範囲: | ±15 psi (±103.42 kPa) | 重圧: | 60 PSI |
|---|---|---|---|
| 出力: | SPI デジタル、最小 12 ビット解像度 | 正確さ: | ±0.25% FSS |
| 供給電圧: | 3.3 VDC | 供給電流: | 標準1.6mA |
| パッケージ: | DIP-8 | 動作温度: | -20℃～+85℃ |
| ハイライト: | YJJ differential pressure sensor ±15psi,SPI output pressure sensor HVAC,Gas analyzer differential pressure sensor |
||

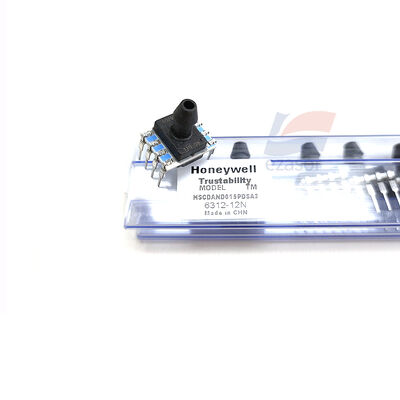

Product Description: YJJ HSCDAND015PDSA3 Differential Pressure Sensor ±15psi SPI Output for HVAC & Gas Analyzer Features: Specification Model: HSCDAND015PDSA3 Series: TruStability® HSC Sensor Type: Piezoresistive Differential Pressure Sensor Specifications Pressure Range: ±15 psi (±103.42 kPa) Overpressure: 60 psi Output: SPI Digital, Min.12-bit Resolution Accuracy: ±0.25% FSS, Total Error Band ±1%FS Supply Voltage: 3.3 VDC (3.0 ~ 3.6 VDC) Supply Current: Typical 1.6 mA
