商品の詳細:
|
| 測定範囲: | 0〜5ppm | 解決: | ≤ 0.01 ppm |
|---|---|---|---|
| 予熱時間: | ≤3分 | 応答時間: | ≤ 60 S |
| 回復時間: | ≤ 60 S | 供給電圧: | DC3.7～5.5V |
| 動作温度: | -20℃ - +50℃ | 動作湿度: | 15～90%RH |
| ハイライト: | YJJ ZE300-C2H5OH ethanol gas sensor,high-resolution ethanol detection module,breath alcohol tester gas sensor |
||

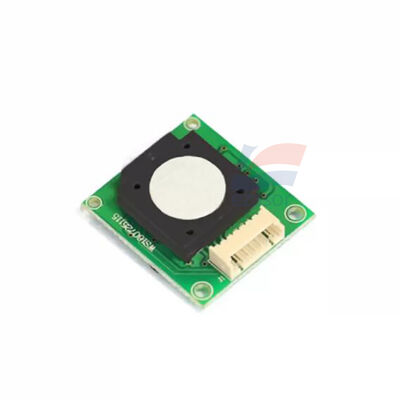

Product Description: YJJ ZE300-C2H5OH High-Resolution Ethanol Gas Detection Module Is Suitable for Breath Alcohol Testers Features: Core detection parameters - Detected gas: Ethanol (alcohol C2H5OH) - Measurement range: **0~5 ppm** - Resolution: ≤ 0.01 ppm - Preheating time: ≤ 3 min - Response time: ≤ 60 s - Recovery time: ≤ 60 s Electrical and communication parameters - Supply voltage: **3.7 ~ 5.5 VDC** - Output signals: 1. UART serial port output (3V TTL level) 2. DAC
