商品の詳細:
|
| 供給電圧: | 4.75〜5.25V | 高レベル: | 4VDD |
|---|---|---|---|
| 低レベル: | 0.8V | 使用サイクル: | 10ms |
| ハイライト: | AFM3000 medical gas flow sensor,digital flow meter for medical,medical air flow sensor |
||

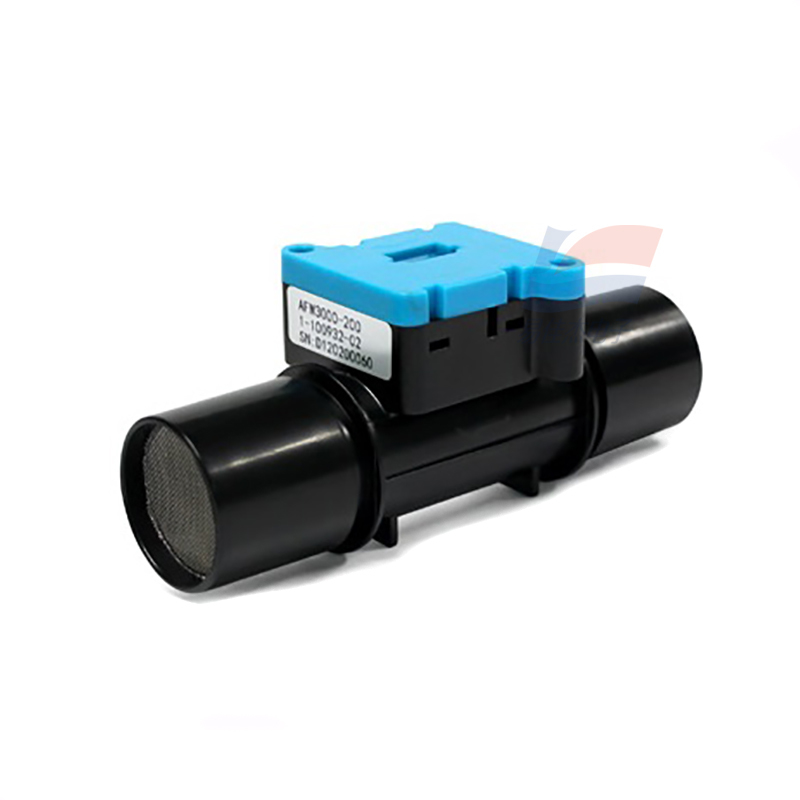

AFM3000 Gas Flow Sensor Digital Flow Meter Use For Medical
The AFM3000 sensor is a digital flow meter designed for ventilator applications. It measures the flow of air, oxygen and other non-aggressive gases with superb accuracy. The special design of the air duct makes the pressure drop of the flow through the sensor very low, making its performance suitable for a variety of demanding application scenarios, such as medical ventilation and respiratory applications.
The AFM3000 operates from a 5V supply voltage and has a digital I2C interface. The output measurements are internally calibrated and temperature compensated.
Features
*Low pressure drop
*Flow range: ±200slm (bidirectional)
*Accuracy 1.5% reading (typical)
*Fast response
*Fully calibrated and temperature compensated
*Small zero drift
Specification:
| Working temperature | 0-50℃ |
| Storage temperature | 0-50℃ |
| Working pressure range | 0.7-1.3bar |
| Operating overpressure | ±0.2bar |
| Burst overpressure | ＞1bar |
| Offset | 32000 |
