商品の詳細:
|
| メーカー: | GEのヘルスケア | 請求書のベンダー: | ダテックス オーメダ |
|---|---|---|---|
| 売り手: | GEのヘルスケア | 購入タイプ: | 完全に |
| ハイライト: | medical differential pressure sensor,respiratory flow sensor,air flow sensor with warranty |
||

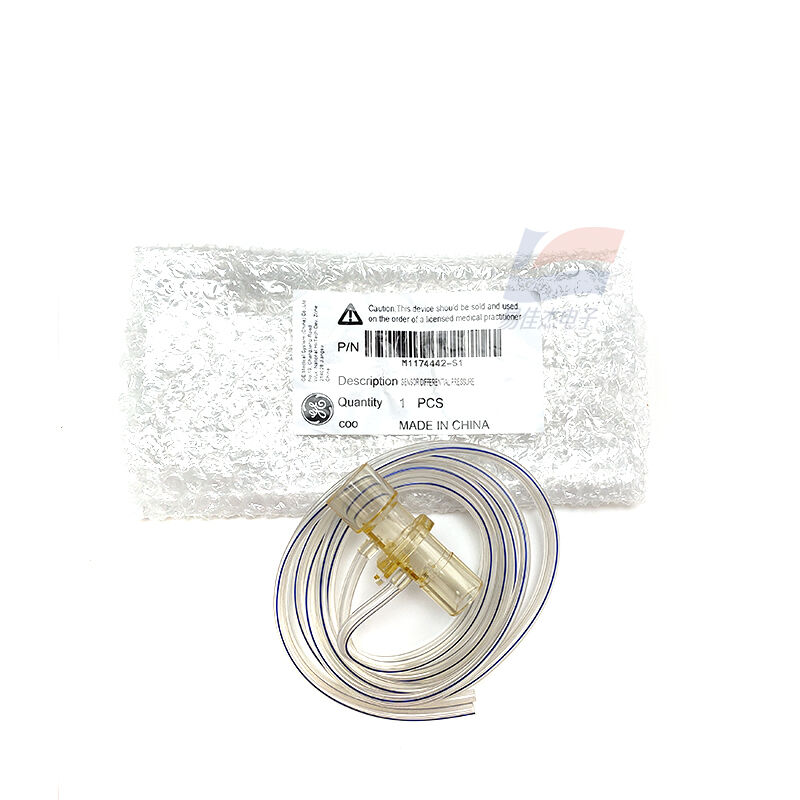

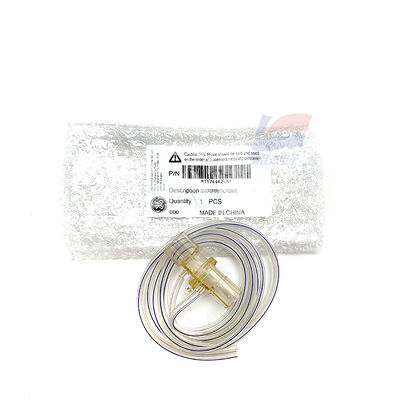

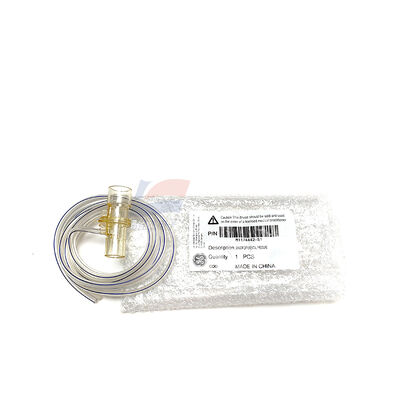

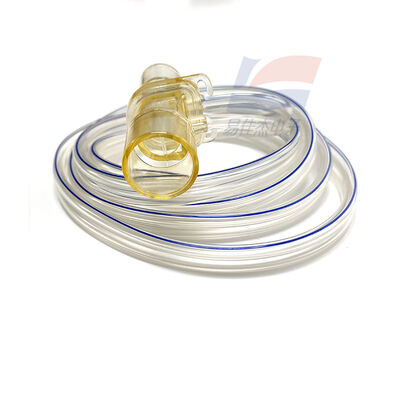

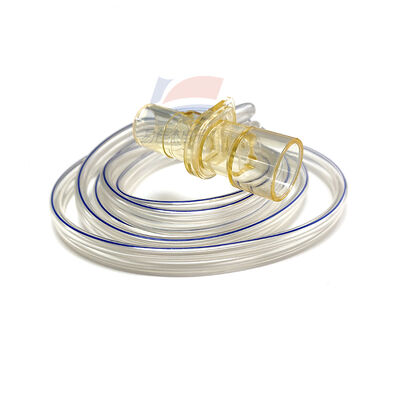

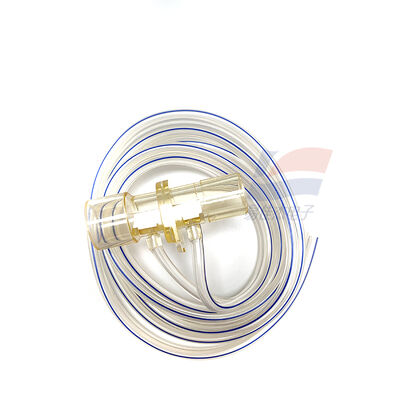

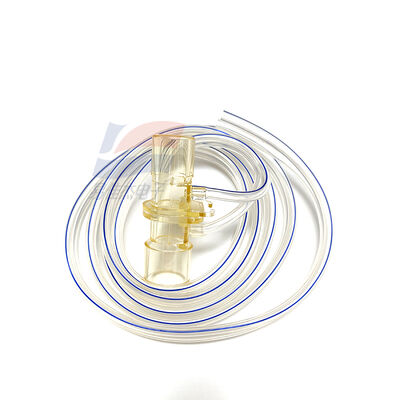

M1174442-S1 Differential Pressure Flow Sensor Respiratory Flow
Core Features
1. Measures bidirectional airflow (inhalation/exhalation) within the breathing circuit, and calculates tidal volume, minute ventilation, and flow waveforms.
2. Operates based on the differential pressure principle: airflow passing through a restriction orifice generates a pressure differential, which the sensor converts into an electrical signal for processing by the host unit.
3. Consists of the sensor body plus a connecting tube; features plug-and-play functionality and is reusable after high-temperature sterilization.
Common Applications and Faults
1. Application Scenarios: Monitoring of respiratory airflow in anesthesia machines within operating rooms and ventilators within ICUs (GE HealthCare).
2. Typical Faults: Significant deviations in tidal volume, abnormal airflow waveforms, or circuit leak failures during self-tests. These issues are primarily caused by sensor aging or contamination, necessitating cleaning or replacement.
3. Installation Guidelines: Observe the correct airflow direction; perform regular cleaning; and prevent contamination of the sensor ports by moisture or secretions.
Specification:
| Type | Differential Pressure Flow Sensor (Respiratory Flow / Tidal Volume Monitoring) — GE HealthCare |
| Compatible Models | GE 9100C, ZY9100, ZY9300 Anesthesia Machines / Ventilators |
| Material | Transparent TPU Body + Silicone Connecting Tube (Reusable) |
