商品の詳細:
|
| 測定された媒体: | N₂、空気、O₂、Ar、CO₂など | 範囲: | 0.5 ～ 50 SLPM |
|---|---|---|---|
| 正確さ: | ±(1.5% 読み取り値 + 0.2% FS) | 再現性: | ≤±0.5%FS |
| 範囲比: | 100:1 | 応答時間: | ≤100ms |
| 開始の流れ: | 低速～8mm/s | 電源: | 1224 VDC ±10% |
| ハイライト: | MEMS thermal gas flowmeter 0.5-50 SLPM,Medical air flow sensor 1.5MPa,Gas mass flowmeter with warranty |
||
Product Description:

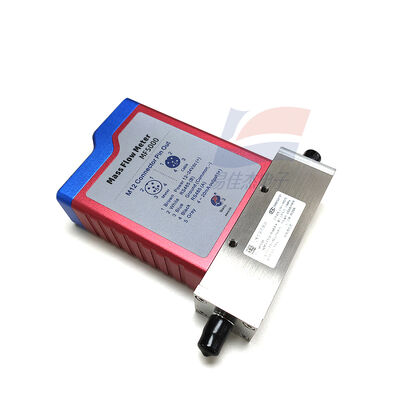

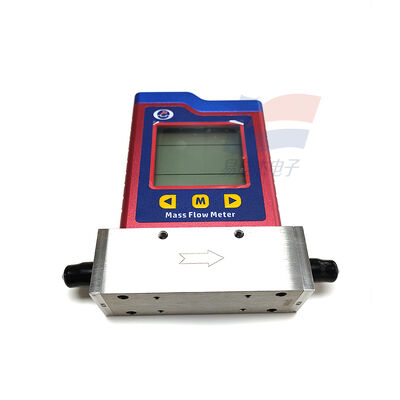

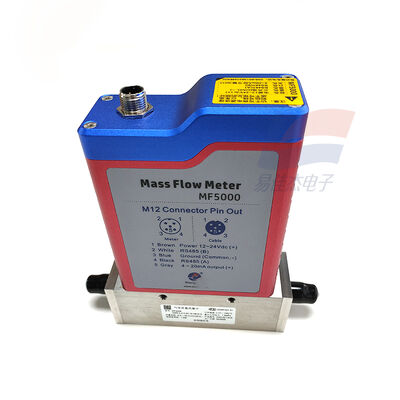

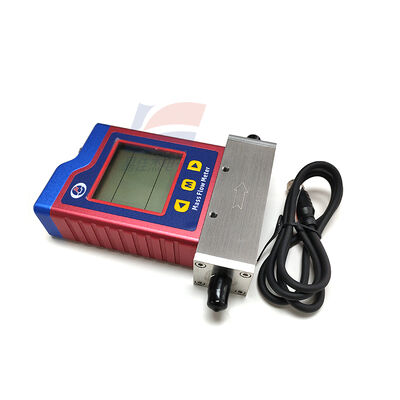

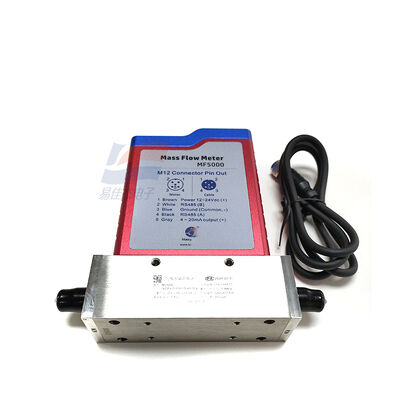

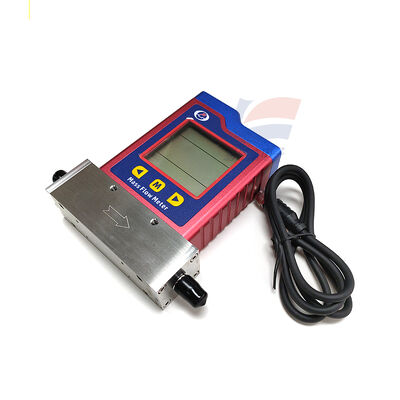

YJJ MF5006-N2M-E-0.5-50-15-AB-D-A MEMS Thermal Gas Mass Flowmeter 0.5 - 50 SLPM 1.5MPa
Features:
I. Model Disassembly (Detailed Meanings of Each Position)
MF5006-N2M-E-0.5-50-15-AB-D-A
MF5006: Series, DN6 (Inner Diameter 6mm, 1/4" Interface)
N2: Standard Gas = Nitrogen (N₂)
M: MEMS Thermal Mass Flow Principle
E: Aluminum Alloy Shell
0.5: Minimum Range 0.5 SLPM (Standard Liters Per Minute at 20°C / 1 atm)
50: Maximum Range 50 SLPM
15: Maximum Working Pressure 1.5 MPa
AB: Output = 4-20mA + RS485 (Modbus-RTU)
D: With LCD Display (Instantaneous + Cumulative Flow)
A: Standard Configuration (No Special Customization)
II. Core Parameters (MF5006-N2M-E-0.5-50-15-AB-D-A)
1. Measurement Performance
Measured Medium: N₂, Air, O₂, Ar, CO₂, etc. Dry, Clean, Oil-Free, No Condensation Gas
Bore / Interface: DN6, 1/4" Inner Thread (G1/4 or NPT1/4)
Range (N₂, 20°C / 1 atm): 0.5–50 SLPM (Standard Liters / Minute)
Accuracy: ±(1.5% Reading + 0.2% FS)
Repeatability: ≤±0.5%FS
Range Ratio: 100:1 (Wide Range, Low Flow Sensitivity)
Response Time: ≤100ms (Fast Follow Flow Changes)
Starting Flow: Low to 8mm/s (Extremely Small Flow Measurable)
2. Electrical and Output
Power Supply: 12–24 VDC ±10%, Power Consumption < 2W
Analog Output: 4–20mA (Corresponding to 0–50 SLPM)
Communication: RS485 (Modbus-RTU), Networkable Remote Monitoring
Display: LCD Screen, Displays Instantaneous Flow (SLPM) + Cumulative Flow
3. Mechanical and Environment
Shell Material: Aluminum Alloy (E-Type), Lightweight, Corrosion Resistant
Contact Material: 316L Stainless Steel
Working Pressure: ≤1.5 MPa (15bar)
Working Temperature: -20°C to +60°C
Humidity: 0–95% RH (No Condensation)
Protection Grade: IP40 (Dustproof, Indoor / General Industrial Environment)
Installation: Horizontal / Vertical Installation at Will, No Straight Pipe Segment Required (Advantage of MEMS Thermal)
4. Principle Characteristics
MEMS Thermal: Direct Measurement of Mass Flow, No Temperature / Pressure Compensation, AccuracyTemperature / Pressure Fluctuations Affect
Ultra-Low Differential Pressure: Minimal Pressure Loss, Suitable for Low Pressure / Small Flow Systems
High Stability: Zero Point Drift Small, Long-Term Maintenance-Free
III. Main Applications (Precise Measurement of Small Bore, Low Flow Gases)
1. Semiconductor / Electronics (Core Scenario)
High-Purity Nitrogen (N₂), Oxygen (O₂), Argon (Ar), Process Gas Ratio and Flow Monitoring
Small Flow Gas Precise Control in Wafer Processing, Diffusion, Etching, Deposition Equipment
2. Medical / Pharmaceutical
Hospital Oxygen / Nitrogen Delivery Flow Monitoring (Respirators, Anesthesia Machines)
Pharmaceutical Sterile Gas, Protective Gas (N₂/Ar) Precise Measurement
3. Laboratory / Research
Small Flow Ratio, Mixing, Reaction Gas Monitoring of Experimental Gases (N₂/O₂/Ar/CO₂)
Low Flow Gas Measurement for Catalysis, Combustion, Environmental Sampling, etc.
4. Industrial Automation
Small Flow Stable Control of Welding Protective Gas (Ar/CO₂)
Flow Monitoring of Precise Processing, Inspection Equipment Blowout / Protection Gas
Small Branch of Compressed Air / Equipment End Energy Consumption Measurement
5. Environmental / New Energy
Low Concentration Exhaust Gas, Tail Gas Small Flow Sampling Monitoring
Low Concentration Hydrogen Gas Measurement for Hydrogen Fuel Cells
Specifications:
| MF5006 | Series, DN6 |
| N2 | Standard Gas = Nitrogen (N2) |
| M | MEMS Thermal Mass Flow Principle |
| E | Aluminum Alloy Shell |
| 0.5 | Minimum Range 0.5 SLPM |
| 50 | Maximum Range 50 SLPM |
| 15 | Maximum Working Pressure 1.5 MPa |
| AB | Output = 4-20mA + RS485 |
| D | With LCD Display |
| A | tandard Configuration |
