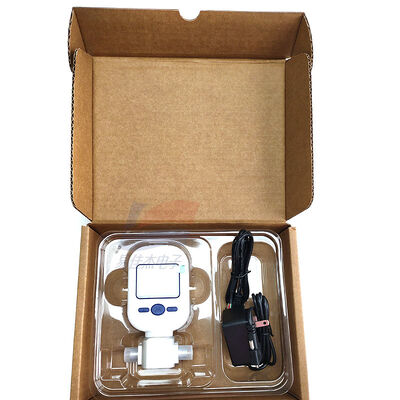

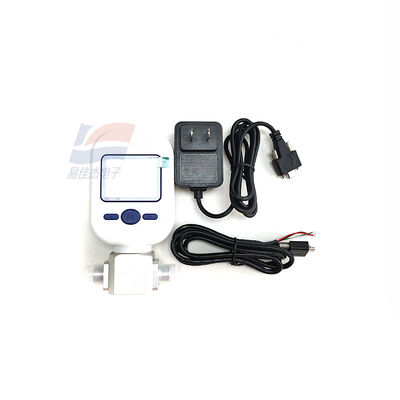

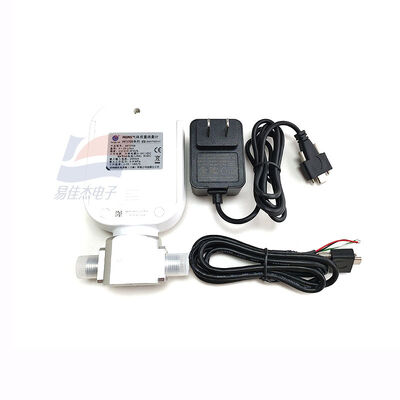

MF5706-G-20-B-A Thermal Gas Mass Flow Sensor With LCD Digital Display
1. Thermal Mass Measurement: Directly measures mass flow, unaffected by fluctuations in operating temperature or pressure;
2. Dual-Function (Digital Display + Communication): Enables direct flow readings at the site while supporting data acquisition via RS485 connection to a PLC or industrial control system; features include totalizer reset, high/low limit alarms, and password-protected parameter settings;
3. Low Power & Portable: Battery provides over two months of continuous operation; supports on-site calibration of coefficients for specific gases;
4. Compact & Easy to Install: Features a compact, straight-through pipeline design with no moving valve cores, minimizing the risk of clogging.
Specification:
| Measurement Range | 0–20 L/min (Standard Conditions: 20°C / 101.325 kPa) |
| Measurement Accuracy | ±(2.0% of Reading + 0.5% FS) |
| Repeatability | ≤0.5% FS |
| Turndown Ratio | 80:1 (Capable of measurement at extremely low start-up flow rates) |
| Response Tim | <2 s |
| Interface | NPT 1/4" Male Thread; Internal Pipe Diameter ≈ 6 mm |
| Pressure Rating | ≤0.8 MPa; Pressure Loss ≤600 Pa |
| Operating Temperature | -10°C to +55°C |
| Power Supply | 4 × AA Dry Batteries / DC 5–24 V External Power Supply |
| Dimensions | Total Length 67 mm, Width 40 mm |
| Resolution | Instantaneous: 0.01 L/min |
