商品の詳細:
|
| 測定範囲: | 0～20SLPM(L/分) | 正確さ: | ±（2.0 + 0.5FS）％ |
|---|---|---|---|
| 再現性: | ≤0.5% | 応答時間: | ≤2秒 |
| ターンダウン率: | 80:1 | 消費電力: | ≤10mW |
| ハイライト: | MEMS thermal gas flow meter,Medical air flow sensor,Industrial gas mass flow meter |
||

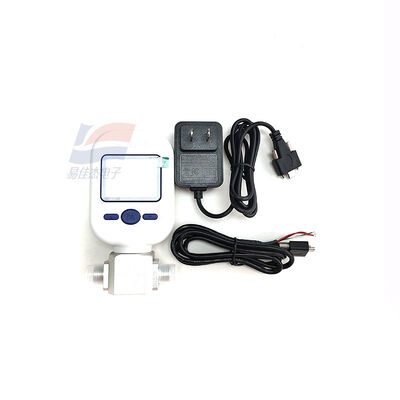

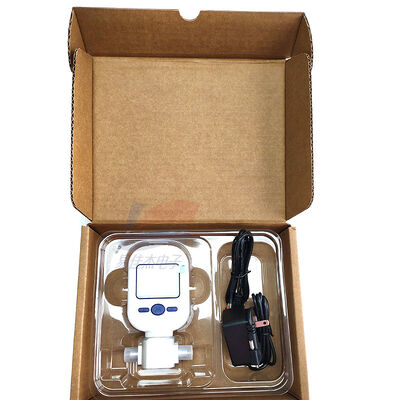

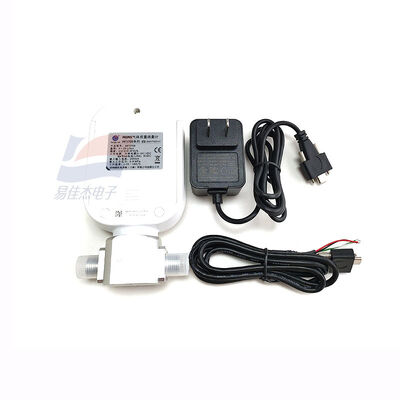

MF5706-G-20-B-A MEMS Thermal Gas Mass Flow Meter for Medical Food Industrial and Environmental Applications
| Product Model | MF5706-G-20-B-A |
| Working Principle | MEMS Thermal Mass Flow (No T/P Compensation) |
| Measuring Range | 0 ~ 20 SLPM (L/min) |
| Accuracy | ±(2.0 + 0.5FS)% |
| Repeatability | ≤0.5% |
| Response Time | ≤2 sec |
| Turndown Ratio | 80:1 |
| Power Supply | 4×AA Battery (LR6) or 5~15VDC External Power |
| Power Consumption | ≤10 mW |
| Battery Runtime | ≥60 days (continuous use) |
| Output Signal | RS485 Modbus RTU (Standard) |
| Display | LCD (Rotatable) |
| Display Units | Instant: SLPM; Cumulative: NCM |
| Resolution | Instant: 0.01 SLPM; Cumulative: 0.001 NCM |
| Connection | G1/4” (BSPP/NPT) Thread |
| Working Pressure | ≤0.8 MPa |
| Working Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -20℃ ~ +65℃ |
| Pressure Loss | 600 ~ 2000 Pa |
| Protection Grade | IP50 |
| Wetted Material | Copper (Non-corrosive Gases) |
| Dimensions (L×W×H) | 67mm × 40mm × 32mm |
| Weight | ≈350g |
