商品の詳細:
|
| 電源: | DC24V | 全面的なパワー消費量: | ≤3W |
|---|---|---|---|
| デジタル通信: | DB9 メスコネクタ RS485 | アナログ信号: | 0〜5V |
| ガス経路インターフェース: | 2-RC 1/4めねじ | 幅と高さ: | 80×50×73mm |
| 正味重量: | 269g | 動作温度: | 0℃ | +50℃ |
| ハイライト: | MEMS gas flow controller 0-20SCCM,RS485 Modbus-RTU gas regulator,medical air flow sensor with warranty |
||

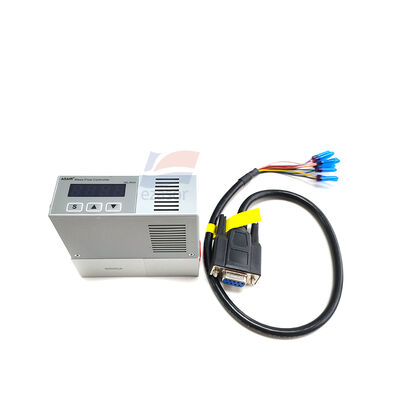

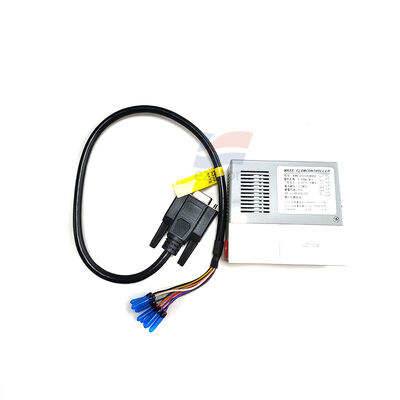

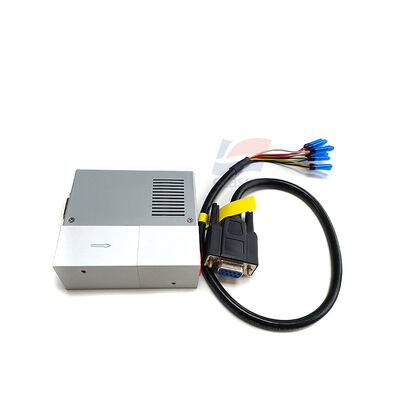

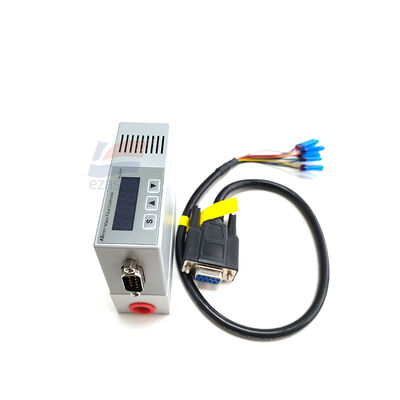

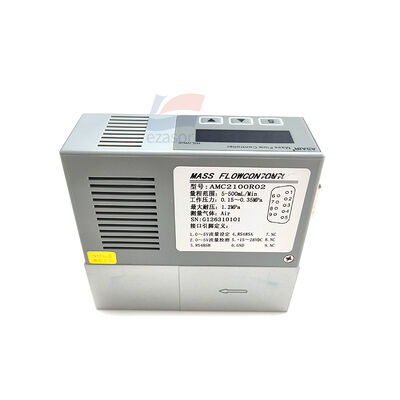

Product Description: YJJ AMC2100R02 MEMS Gas Mass Flow Controller 0-20SCCM RS485 Modbus-RTU Gas Flow Regulator Features: I. Core Performance Parameters Detection Principle: MEMS thermal micro-electromechanical flow sensing chip Rated Capacity: 0 - 20 SCCM (standard condition: 0℃, 101.325kPa) Measurement Accuracy: ±0.5% FS Repeatability: ≤0.5% FS Response Time: ≤2 s Acceptable Inlet Pressure: 0.15 - 0.35 MPa Allowable Pressure Difference: ≤0.1MPa Applicable Medium: Dry and
